Industriële CTP Productie 1 van Drukmachine 35/45PPH - de Interface van Beetjetif

Basisinformatie
Plaats van herkomst: China
Merknaam: Yinber
Certificering: ISO9001~2000
Modelnummer: 2900
Min. bestelaantal: 1 set
Prijs: $20000~50000 per set
Verpakking Details: Steunt het de uitvoer Houten Geval voor het overzeese verschepen goed de vorkheftruck, 5,0 CBM/set,
Levertijd: 20-30 dagen
Betalingscondities: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Levering vermogen: 300 reeksen per Jaar
werkschemasoftware: harlekijn /prinergy ladingssysteem: semi-auto/automatisch
bestuurderssteun: 1-beetje TIF-interface en directe werkschemabestuurder, steun cip3/cip4 autoloader: facultatief
Automatische rang: Automatisch, Halfautomatisch Voorwaarde: Nieuw
Markeren:

digitale plaatzetter

,

computer aan plaatmateriaal

,

96 kanalenctp machine

Puntnaam: zeer groot formaat 96 kanaliseert thermische computer naar plaatmateriaal 1200x1400 mm 2400 DPI

Werkomgeving:

Maximum: 1160mm x940mm

Gewicht: 1500KG“

Temperatuur: 20~25C

Ladingssysteem: volautomatische lading

productie: 17/24/29/35/45PPH,

Grootte: 2200mmx1350mmx1350mm

grootte: kleine ctp/commerciële ctp/zeer groot formaat ctp.

„plaattype: thermisch /UV,

Resolutie: 2400 DPI

Laserbron: 830nm/405nm

(grootte 1130x800mm van de testplaat)

Min: 350mm x400mm

beschikbare laserdioden: de kanalen van 32/48/64/96/128,

Nederigheid: 40%~80%

Plaatmaat: 0.15~0.40mm dikte

Machtsinput: AC220V, 50~60Hz, 8KVA

Plaatmaat: 0.150.40mm

CTP Interface: 1-beetje TIF-interface en directe werkschemabestuurder, steun CIP3/CIP4

Thermische CTP (semi-Auto)

Industriële CTP Productie 1 van Drukmachine 35/45PPH - de Interface van Beetjetif 0

Technische beschrijving
Model Thermische CTP
Yinber 8300A Yinber 8500A1 Yinber 8600A Yinber 4300A Yinber 4500A
Nr van Lasers 32 48 64 32 48
Productiviteit
(1130x800mm)
(plates/h)
17 22 26 22 29
Max./Min. Formaat Max.: 1160mmx940mm
Min.: 350mmx400mm
Max.: 800mmx660mm
Min.: 350mmx400mm
Laserbron 830nm
Resolutie dpi 2400 (de Resolutie kan, tot 8000dpi-maximum worden aangepast)
Ladingssysteem Semi-auto
Platenvereiste 0.150.4mm
Thermische platen, geen merkvereiste
CTP Interface 1-beetje TIF-interface en directe werkschemabestuurder, steun CIP3/CIP4
Macht AC220-230V, 50-60Hz 5.5KW
Milieu Temperatuur: 20-25ºC Vochtigheid: 40%-80%
Grootte & Gewicht Grootte: 2020mmx 1000mmx 930mm
Gewicht: 1500kg
Grootte: 1900mmx 1200mmx 1000mm
Gewicht: 1000kg
Werkschemasoftware HQ&PR
UVctp (semi-Auto)
Industriële CTP Productie 1 van Drukmachine 35/45PPH - de Interface van Beetjetif 1
Technische beschrijving
Model UV (thermische) CTCP
Yinber 9300A Yinber 9500A Yinber 9600A Yinber 5300A Yinber 5500A
Nr van Lasers 32 48 64 32 48
Productiviteit
(1130x800mm)
(plates/h)
17 22 26 22 28
Max./Min. Formaat Max.: 1160mmx940mm
Min.: 350mmx400mm
Max.: 800mmx660mm
Min.: 350mmx400mm
Laserbron 405nm
Resolutie dpi 2400 (de Resolutie kan, tot 8000dpi-maximum worden aangepast)
Ladingssysteem Semi-auto
Platenvereiste 0.150.4mm
UVplaten, geen merkvereiste
CTP Interface 1-beetje TIF-interface en directe werkschemabestuurder, steun CIP3/CIP4
Macht AC220-230V, 50-60Hz 5.5KW
Milieu Temperatuur: 20-25ºC Vochtigheid: 40%-80%
Grootte & Gewicht Grootte: 2020mmx 1000mmx 930mm
Gewicht: 1500kg
Grootte: 1900mmx 1200mmx 1000mm
Gewicht: 1000kg
Werkschemasoftware HQ&PR

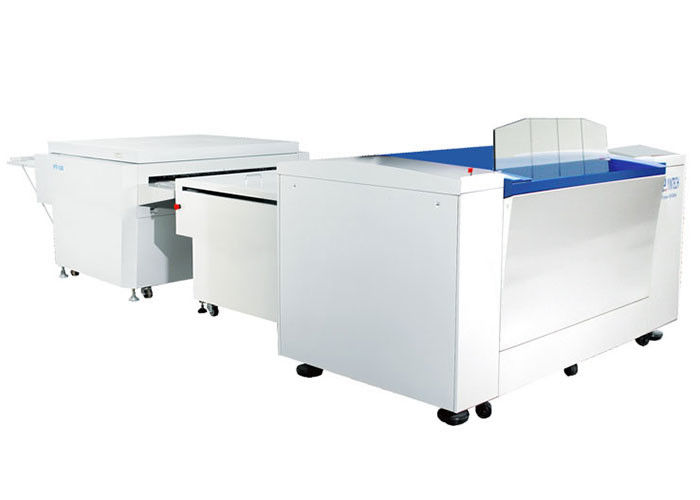

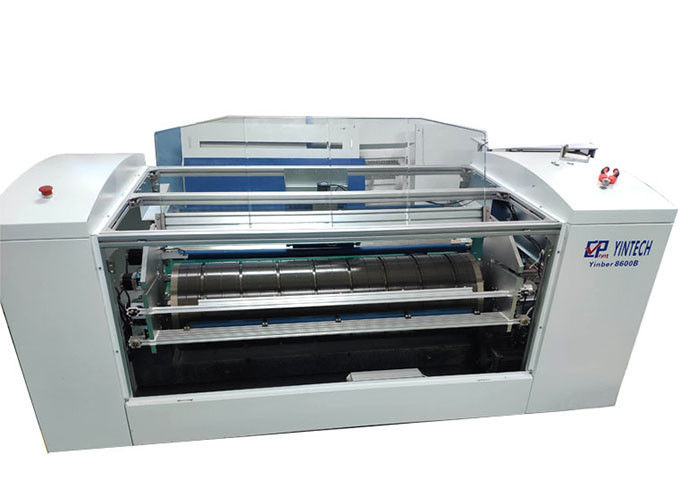

Automatische Thermisch CTP (VERSUS UV)
Industriële CTP Productie 1 van Drukmachine 35/45PPH - de Interface van Beetjetif 2
Technische beschrijving
Model Thermisch UV
Yinber 8300B Yinber 8500B Yinber 8600B Yinber 9300B Yinber 9500B Yinber 9600B
Nr van Lasers 32 48 64 32 48 64
Productiviteit
(1130x800mm)
(platen/uur)
17 24 29 17 24 29
Max./Min. Formaat Max.: 1160mmx940mm Min.: 350mmx400mm
Laserbron 830nm 405nm
Resolutie dpi 2400 (de Resolutie kan, tot 8000dpi-maximum worden aangepast)
Ladingssysteem Automatisch, semi-Auto (beschikbare auto-Lader)
Platenvereiste 0.150.4mm
Thermische platen, geen brandrequirement
0.150.4mm
UVplaten, geen merkvereiste
CTP Interface 1-beetje TIF-interface en directe werkschemabestuurder, steun CIP3/CIP4
Macht AC220V, 50-60Hz 8KW
Milieu Temperatuur: 20-25ºC Vochtigheid: 40%-80%
Grootte & Gewicht Grootte: 2200mmx1350mmx1350mm Gewicht: 1500kg
Werkschemasoftware HQ&PR

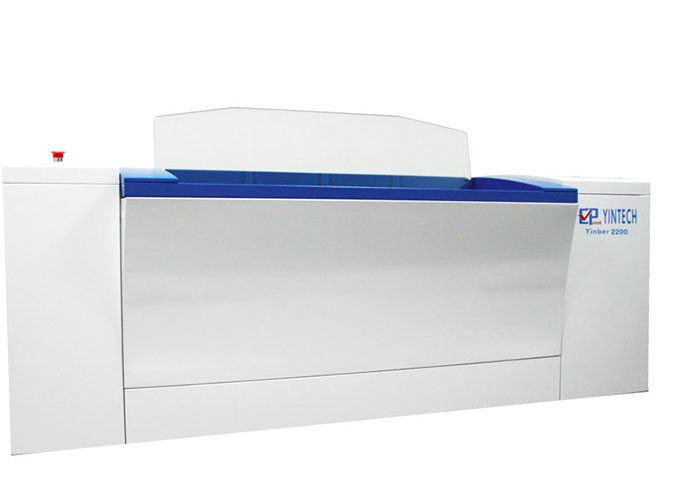

Groot Thermisch Formaat CTP (VERSUS UV)
Industriële CTP Productie 1 van Drukmachine 35/45PPH - de Interface van Beetjetif 0
Technische beschrijving
Model Thermisch UV
Yinber 2200 Yinber 2300 Yinber 2200U Yinber 2300U
Nr van Lasers 48 64 48 64
Productiviteit
(1130x800mm)
(platen/uur)
12 13 14 15 12 13 14 15
Max./Min. Formaat 1200x 1400


508x394
1400x 1700


508x394
1200x 1400


508x394
1400x 1700


508x394
1200x 1400


508x394
1400x 1700


508x394
1200x 1400


508x394
1400x 1700


508x394
Laserbron 830nm 405nm
Resolutie dpi 2400
Ladingssysteem Enige plaat, handlading
Platenvereiste 0.150.4mm
Thermische Platen
0.150.4mm
UVplaten
CTP Interface 1-beetje TIF-interface en directe werkschemabestuurder, steun CIP3/CIP4
Macht AC220V, 50-60Hz 8KW
Milieu Temperatuur: 20-25ºC Vochtigheid: 40%-80%
Grootte & Gewicht Grootte: 2880mmx1310mmx1310mm Gewicht: 2800kg
Werkschemasoftware HQ&PR
